Tungsten carbide dies
Properties of grades and application recommended.
| Grade | Density (g/cm3) | Hardness
(HRA) |
TRS
(MPa) |
Application recommended |
| YG20C | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | 83.0 | 3500 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers. |
Heading die blanks for making standard bolts.
| TYPE | Application range | |||||
| d | D | Range of L | ||||
| 00710- | 0.7 | 10 | 12-20 | M1 | ||
| 01010- | 1.0 | 10 | 12-20 | M1.5-M2 | ||
| 01013- | 1.0 | 13 | 15-40 | M1.5-M2 | ||
| 01213- | 1.2 | 13 | 15-40 | M1.5-M2 | ||
| 01510- | 1.5 | 10 | 12-25 | M2 | ||
| 01516- | 1.5 | 16 | 15-45 | M2 | ||
| 01813- | 1.8 | 13 | 12-45 | M2.5 | ||
| 01816- | 1.8 | 16 | 20-45 | M2.5 | ||
| 02113- | 2.1 | 13 | 15-30 | M3 | ||
| 02116- | 2.1 | 16 | 25-45 | M3 | ||
| 02316- | 2.3 | 16 | 15-45 | M3 | ||
| 02522- | 2.5 | 22 | 20-60 | M3 | ||
| 02813- | 2.8 | 13 | 15-30 | M4 | ||
| 02816- | 2.8 | 16 | 25-40 | M4 | ||
| 02818- | 2.8 | 16 | 20-50 | M4 | ||
| 02820- | 2.8 | 20 | 20-50 | M4 | ||
| 02822- | 2.8 | 22 | 20-60 | M4 | ||
| 02825- | 2.8 | 25 | 20-60 | M4 | ||
| 3216- | 3.2 | 16 | 15-45 | M4 | ||
| 3218- | 3.2 | 18 | 15-50 | M4 | ||
| 3616- | 3.6 | 16 | 20-50 | M5 | ||
| 3618- | 3.6 | 18 | 20-60 | M5 | ||
| 3822- | 3.8 | 22 | 20-40 | M5 | ||
| 3830- | 3.8 | 30 | 50-60 | M5 | ||
| 4218- | 4.2 | 18 | 20-60 | M5 | ||
| 4616- | 4.6 | 16 | 20-30 | M6 | ||
| 4622- | 4.6 | 22 | 20-60 | M6 | ||
| 5422- | 5.4 | 22 | 20-60 | M6 | ||
| 6422- | 6.4 | 22 | 20-60 | M8 | ||
| 6425- | 6.4 | 25 | 20-60 | M8 | ||
| 6430- | 6.4 | 30 | 20-60 | M8 | ||
| 7230- | 7.2 | 30 | 20-50 | M10 | ||
| 8230- | 8.2 | 30 | 25-60 | M10 | ||
| 8235- | 8.2 | 35 | 20-60 | M10 | ||
| 9230- | 9.2 | 30 | 20-60 | M12 | ||
| 10030- | 10.0 | 30 | 30-60 | M12 | ||
| 10035- | 10.0 | 35 | 20-60 | M12 | ||
| 11235- | 11.2 | 35 | 20-60 | M12 | ||
| 11240- | 11.2 | 40 | 30-60 | M12 | ||
| 11835- | 11.8 | 35 | 20-60 | M14 | ||
| 11840- | 11.8 | 40 | 20-30 | M14 | ||
| 13235- | 13.2 | 35 | 20-60 | M14 | ||
| 13240- | 13.2 | 40 | 25-50 | M14 | ||
| 13835- | 13.8 | 35 | 25-60 | M16 | ||
| 13840- | 13.8 | 40 | 25-35 | M16 | ||
| 14445- | 14.4 | 45 | 25-60 | M18 | ||
| 15445- | 15.4 | 45 | 30-50 | M18 | ||
| 16445- | 16.4 | 45 | 25-60 | M20 | ||
| 17445- | 17.4 | 45 | 25-60 | M20 | ||
| 19445- | 19.4 | 45 | 25-55 | M22 | ||
| 21050- | 21.0 | 50 | 25-55 | M24 | ||
| 24460- | 24.4 | 60 | 30-50 | M27 | ||
Type BC dies blanks with sink
| Type | Dimension | Application range | |||||
| d | D | L | d1 | ||||
| 281330- | 2.8 | 13 | 30 | 7 | M4 | ||
| 381630- | 3.8 | 16 | 30 | 8.5 | M5 | ||
| 381640- | 3.8 | 16 | 40 | 8.5 | M5 | ||
| 382250- | 3.8 | 22 | 50 | 8.5 | M5 | ||
| 461630- | 4.6 | 16 | 30 | 10.5 | M6 | ||
| 462250- | 4.6 | 22 | 50 | 10.5 | M6 | ||
| 643030- | 6.4 | 30 | 30 | 15 | M8 | ||
| 643055- | 6.4 | 30 | 55 | 15 | M8 | ||
| 823655- | 8.2 | 36 | 55 | 18 | M10 | ||
| 1004055 | 10.0 | 40 | 55 | 22 | M12 | ||
| 1184555 | 11.8 | 45 | 55 | 25 | M14 | ||
| 1386060 | 13.8 | 60 | 60 | 29 | M16 | ||

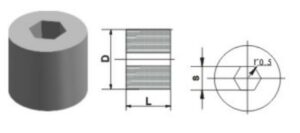

Type BF internal hexagonal die blanks.
| Type | Size | Application range | ||
| s | D | L | ||
| 261210- | 2.6 | 12 | 10 | M1.6 |
| 341210- | 3.4 | 12 | 10 | M2 |
| 441612- | 4.4 | 16 | 12 | M2.5 |
| 481612- | 4.8 | 16 | 12 | M3 |
| 632016- | 6.3 | 20 | 16 | M4 |
| 722416- | 7.2 | 24 | 16 | M5 |
| 923016- | 9.2 | 30 | 16 | M6 |
| 1213210- | 12.1 | 32 | 10 | M8 |
| 1213220- | 12.1 | 32 | 20 | M8 |
| 1504024 | 15 | 40 | 24 | M10 |
| 1504030 | 15 | 40 | 30 | M10 |
| 1704430 | 17 | 44 | 30 | M12 |
| 1995236 | 19.9 | 52 | 36 | M14 |
| 2285842 | 22.8 | 58 | 42 | M16 |
| 2817250 | 28.1 | 72 | 50 | M20 |
Cold heading and cold punching dies
Suitable for cold heading and cold punching standard parts, screws and rivets of copper, aluminum, steel and alloy steel, they are available in the frequently used types of flat headed cold heading dies sunk cold heading dies one operation-punching and ejection dies rod reducing dies.

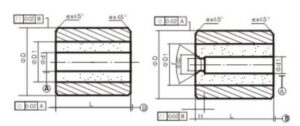

The sketches and sizes are as follows:
| Type | d | L |
| Flat headed | 2.0-6.0 | 25-60 |
| Sunk | 2.0-5.0 | 25-50 |
| Type | d | L |
| One operation punching and ejection dies | 10.0-25.0 | 100-130 |
| Rod reducing dies | 10.0-25.0 | 100-130 |
| Type | d | L |
| One operation punching and ejection dies | 7.0-15.0 | 30-100 |
| Rod reducing dies | 7.0-15.0 | 30-100 |
All dimensions are in mm.
We can produce according to customer’s request.
